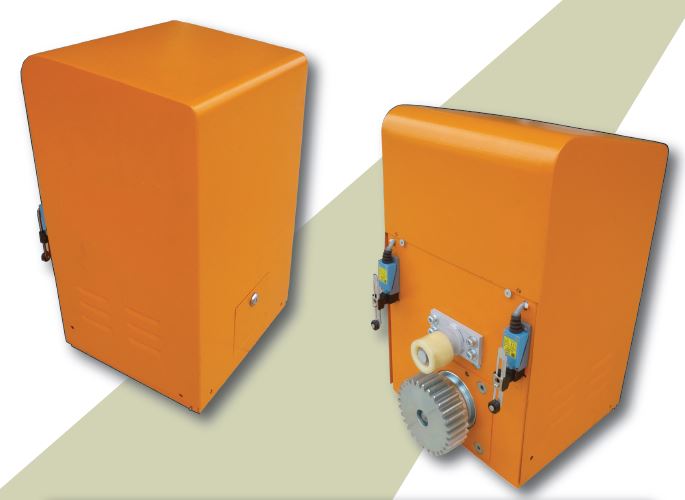

GLIKON COS-3B

  • GLIKON COS-3B

Heavy duty 3 Phase 2HP AC Sliding Operator

COS-3B is a heavy duty electromechanical gear operator for sliding gates which support up to 4000kg gate weight

  • Oil Bath gear motor (The internal temperature, the tear and wear of gearbox is kept to the minimum)
  • Motor rotation speed 3000rpm , Gate opening speed : 1ft /sec (3m/10secs)
  • 3phase 2.5HP AC Motor power supply 415V @ 50Hz
  • The controller has 3phase motor phase protection feature, any one phase missing will cut off motor drives
  • Overload sensing protection to prevent motor overheated
  • Electro-limit switch system with adjustable plates
  • Emergency motor clutch release key in case of power failure
  • Motor running at a single speed only, with the courtesy of a soft start feature to cut down the high torque motor start-up
  • The controller supports the photo beam feature, the gate will auto-reverse fully when obstruction occurs.
  • The heavy duty gate will auto-reverse by 2ft and motor drive is cut-off whenever the gate is crashed / jammed for the duration of 15secs to prevent overheating.
  • Optional Pillar lamp lighting feature
  • It utilizes 3 push buttons (for open, close and stop control) and remote controls for inputs



  • One speed only, courtesy with a soft start feature to cut down the high torque motor start-up
  • Anti-jam mechanism: The operator is installed with a PE roller to prevent the gear rack/the gate by lifting up. This will prevent damaged to the teeth of the gear rack or the output gear and reduce the friction noises
  • Safety Photo beam function – Infrared terminal (NC) for 3 phase system and (NO) for single phase system. The operator will stop and reverse if it was obstructed on closing and stop when it was obstructed on opening
  • Manual clutch release design for emergency purposes
  • Prevent motor overheating – Cut off motor drive after a continuous false operation (~15secs)
  • Optional 240V output terminal for used with AC lamp usage (it is programmed with 3 minutes delay to cut off the output after motor has stopped)
  • Heavy duty Gate drive up to 4000kg gate

MODEL COS-3B
POWER SUPPLY 415v AC, 3 Phase
MOTOR POWER 2.5 HP
MOTOR SPEED 3000rpm
LINEAR GATE SPEED 1ft/s (3m/10s)
3-phase protection 3-phase monitoring*
LIMIT SWITCH Industrial Switch (jumper settings NO/NC)
MOTOR DRIVER 6 Pin Lock
OVERLOAD SENSING Adjustable High-Amp Cut-off
MAX GATE WEIGHT MAX GATE WEIGHT 4000kg
IR SAFETY BEAM Optional IR SAFETY BEAM Optional
Motor GEAR TYPE LUBRICATION Oil Bath
REMOTE CONTROL REMOTE CONTROL Optional
PACKAGING DIMENTIONS 323W x 369L x 538H
COATING Weather Resistant Powder Finish

*Any one phase is absent will stop the motor to operate
