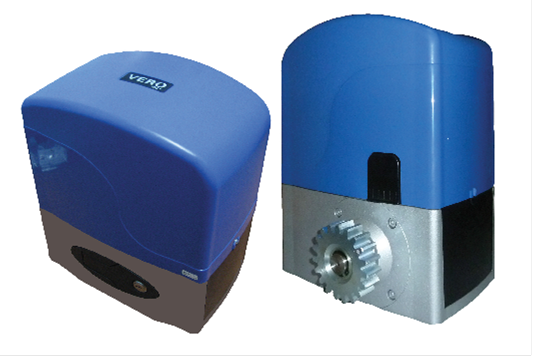

VERO is an electromechanical gear operator for sliding gates which support up to 1500kg gate weight
- Oil bath gear motor (The tear and wear of gearbox is kept to the minimum)
- Motor rotation speed 1400rpm , Gate opening speed : 12 meters / minute
- AC Motor power supply 240V @ 50Hz , 550W absorb power
- Built-in thermal protection to prevent motor overheated
- Electro-magnetic limit switch system with adjustable plates
- Emergency release key in case of power failure
- Motor running at a single speed only, with the courtesy of braking and an inching soft-start features
- Auto-reverse on closing if it hits an obstacle ; Stopping on opening if it hits an obstacle (Crashing force is adjustable)
- Dual pillar lighting modes (follow or delay selectable)
- Push button and remote controls for inputs
- Anti-crash feature with the use of photobeam to detect obstacle or pedestrians
- Electro-locking system, prevent anyone to trigger the gate opening/closing
- Optional panic alarm function
- One speed only, courtesy with soft start and brake feature. Where the soft-start helps to cut down the high torque motor start-up and the brake feature helps the gate stop right at the limit position
- Safety Photo beam function – Infrared terminal (NC). The gate will stop and fully reverse if it was obstructed on closing and stop when it was obstructed on opening
- Auto-reverse/stop function (double safety): The gate will stop and fully reverse if it was obstructed on closing and stop when it was obstructed on opening. This will prevent hurting any human and reduce the property damage to the minimum when crashed incident happens
- Manual key release design for emergency purposes
- Prevent motor overheating – Motor operation is ceased automatically if it is too hot
- Optional 240V output terminal for used with AC pillar lamp usage (Two options: 1st option used with 60secs delay to cut off the output after motor has stopped. 2nd option is to follow the gate operation, the light will ON only when the gate is moving, otherwise it is OFF)
- The motor can support up to 1500kg gate
- Electro-locking system, prevent anyone to trigger the gate opening/closing
- Optional panic alarm function
| MODEL | VERO |
| POWER SUPPLY | 240v AC, Single Phase |
| MOTOR POWER | 550W |
| MOTOR SPEED | 1400rpm |
| LINEAR GATE SPEED | 12m/minute |
| LIMIT SWITCH | Built-in with Electro-Magnetic triggered |
| PINION GEAR | Z19 / Z24 |
| CLUTCH | Mechanical Slip clutch |
| THERMAL PROTECTION | At 120ºC built into motor winding |
| MAX GATE WEIGHT | MAX GATE WEIGHT 1500kg |
| IR SAFETY BEAM Optional | IR SAFETY BEAM Optional |
| MOTOR GEAR TYPE | Oil bath gear motor |
| MANUAL RELEASE KEY | Special release key for power failure |
