SPEEDY

  • GENIO

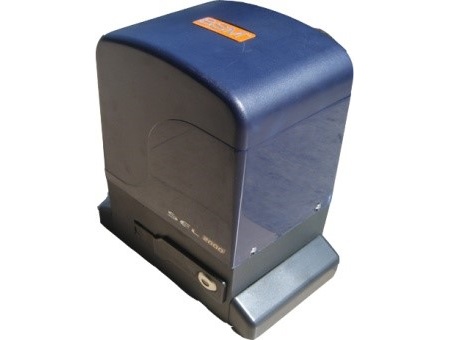

Single Phase 0.5HP AC Sliding Operator

SPEEDY is an electromechanical gear operator for sliding gates which support up to 900kg gate weight

  • Grease soak gear motor (The tear and wear of gearbox is kept to the minimum)
  • Motor rotation speed 2800rpm , Gate opening speed : 24 meters / minute
  • AC Motor power supply 240V @ 50Hz , 370W absorb power
  • Built-in thermal protection to prevent motor overheated
  • Electro-magnetic limit switch system with adjustable plates
  • Emergency release key in case of power failure
  • Motor running at a dual speeds, with the courtesy of an inching soft-start and soft-stop features
  • Auto-reverse on closing if it hits an obstacle ; Stopping on opening if it hits an obstacle (Crashing force is adjustable)
  • Dual pillar lighting modes (follow or delay selectable)
  • Push button and remote controls for inputs
  • Anti-crash feature with the use of photobeam to detect obstacle or pedestrians
  • Electro-locking system, prevent anyone to trigger the gate opening/closing
  • Dual speeds, courtesy with soft-start and soft-stop features.
  • Safety Photo beam function – Infrared terminal (NC). The gate will stop and fully reverse if it was obstructed on closing and stopwhen it was obstructed on opening
  • Auto-reverse/stop function (double safety): The gate will stop and fully reverse if it was obstructed on closing and stop when it was obstructed on opening. This will prevent hurting any human and reduce the property damage to the minimum when crashed incident happens
  • Manual key release design for emergency purposes
  • Prevent motor overheating – Motor operation is ceased automatically if it is too hot
  • Optional 240V output terminal for used with AC pillar lamp usage (Two options: 1st option used with 60secs delay to cut off the output after motor has stopped. 2nd option is to follow the gate operation, the light will ON only when the gate is moving, otherwise it is OFF)
  • The motor can support up to 900kg gate
  • Electro-locking system to prevent anyone to trigger the gate opening/closing
MODEL SPEEDY
POWER SUPPLY 240v AC, Single Phase
MOTOR POWER 370W
MOTOR SPEED 2800rpm
LINEAR GATE SPEED 24m/minute
LIMIT SWITCH Built-in with Electro-Magnetic triggered
PINION GEAR Z19 / Z24
CLUTCH Mechanical Slip clutch
THERMAL PROTECTION At 120ºC built into motor winding
MAX GATE WEIGHT MAX GATE WEIGHT 900kg
IR SAFETY BEAM Optional IR SAFETY BEAM Optional
MOTOR GEAR TYPE Grease soak gear drive
MANUAL RELEASE KEY Special release key for power failure
