OAE

  • OAE

12-18V DC stainless-steel ARM Operator , 15W per arm

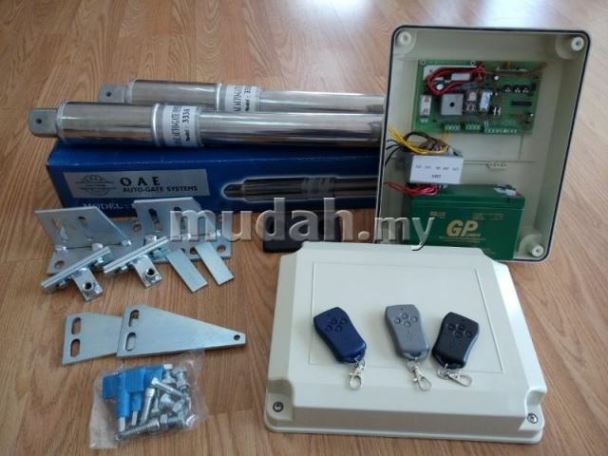

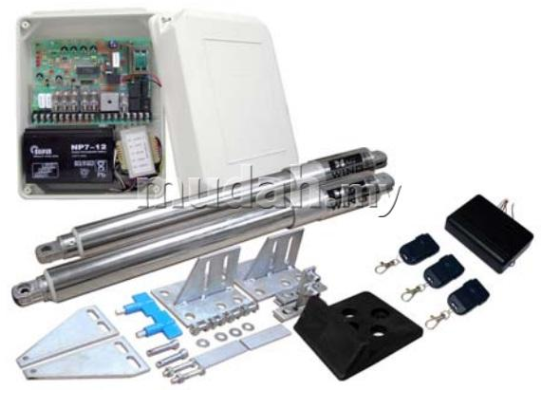

OAE is an electromechanical gear operator for swing/folding gate types which support up to 400kg gate weight

  • 4 feet to 8 feet per leaf
  • The system provides electronic anti-crashing feature, auto reverse & instant stop upon contact.
  • Easy installation, none underground motor.
  • With backup battery, the system can still be operated during power failure.
  • Dual speed design with soft cushion stopping.

  • 4 feet to 8 feet per leaf
  • The system provides electronic anti-crashing feature, auto reverse & instant stop upon contact.
  • Easy installation, none underground motor.
  • With backup battery, the system can still be operated during power failure.
  • Dual speed design with soft cushion stopping.

MODEL OAE-333A(Stainless Steel ARM)
Operating Voltage DC 18V for Normal Speed
DV 12V For ending Speed
Motor Output 15 watt per arm
Motor Output 2.1
Piston Displace 32 cm
Piston Speed 2.9cm / sec
Opening Speed 90 deg ( 10-12 sec )
Back-up Battery 12Volt 7 AH Rechargeable
Safety Clutch Electric Current Sensing using HI-AMP Auto-Reverse
Safety Barrier Infrared Beam Sensor
Electric Controller Micro-Processor based
Temperature 0 to 80C
Gear Box Three Stages Planetary Reducer
Manual Operation Special Release Key during power failure
Max. wrt of gate 400kg per-wing with force adjustable
Max lenght of gate 5 meter per wing
